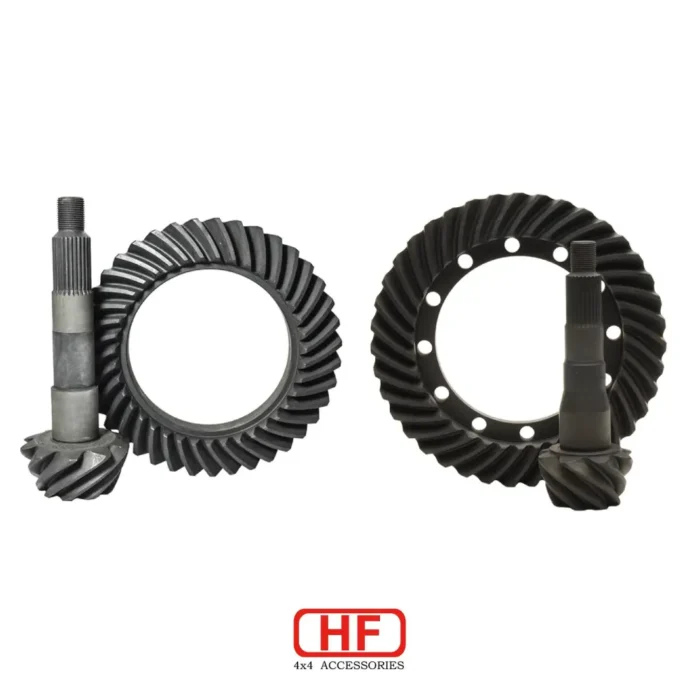

Upgrade your drivetrain with HF precision-engineered 4.88 Ring & Pinion gear set, designed specifically for the Toyota Land Cruiser & Lexus LX. Ideal for off-road builds running larger tires, this gear ratio helps restore lost torque and drivability while improving low-end performance.
Differential specs for 4.88 HF Ring & Pinion:
Application: Toyota 8″ Front Differential (Reverse) & 9,5″ Rear Differential
Gear Ratio: 4.88
Tooth Count: 39 ring – 8 pinion
Pinion Spline: 27
Ring Gear Bolt: 10 Front and 12 Rear
Compatible Vehicles for 4.88 HF Ring & Pinion:
1990-1997 Toyota Land Cruiser 80 / HDJ80 / HZJ80 / FJ80 / FZJ80
1987-1996 Toyota Land Cruiser Prado 70 / LJ71 / LJ72 / LJ78 / KZJ71 / KZJ78 / RJ70
1990-1999 Toyota Land Cruiser 70 / BJ70 / HZJ70 / PZJ70
1999-2015 Toyota Land Cruiser 79 / HZJ79 / HDJ79 / FZJ79 / GRJ79
1998-2007 Toyota Land Cruiser 105 / HZJ105 / FZJ105
1998-2007 Toyota Land Cruiser 100 / UZJ100 / FZJ100 / HDJ100 / Cygnus
1996-1998 Lexus LX450
1999-2007 Lexus LX470
For vehicles manufactured before 2002 , the pinion spline count is 27 – It is compatible with the original flange.
For vehicles manufactured 2002 onward if the pinion spline count is 29. It may require replacing the flange to match the updated pinion shaft.
